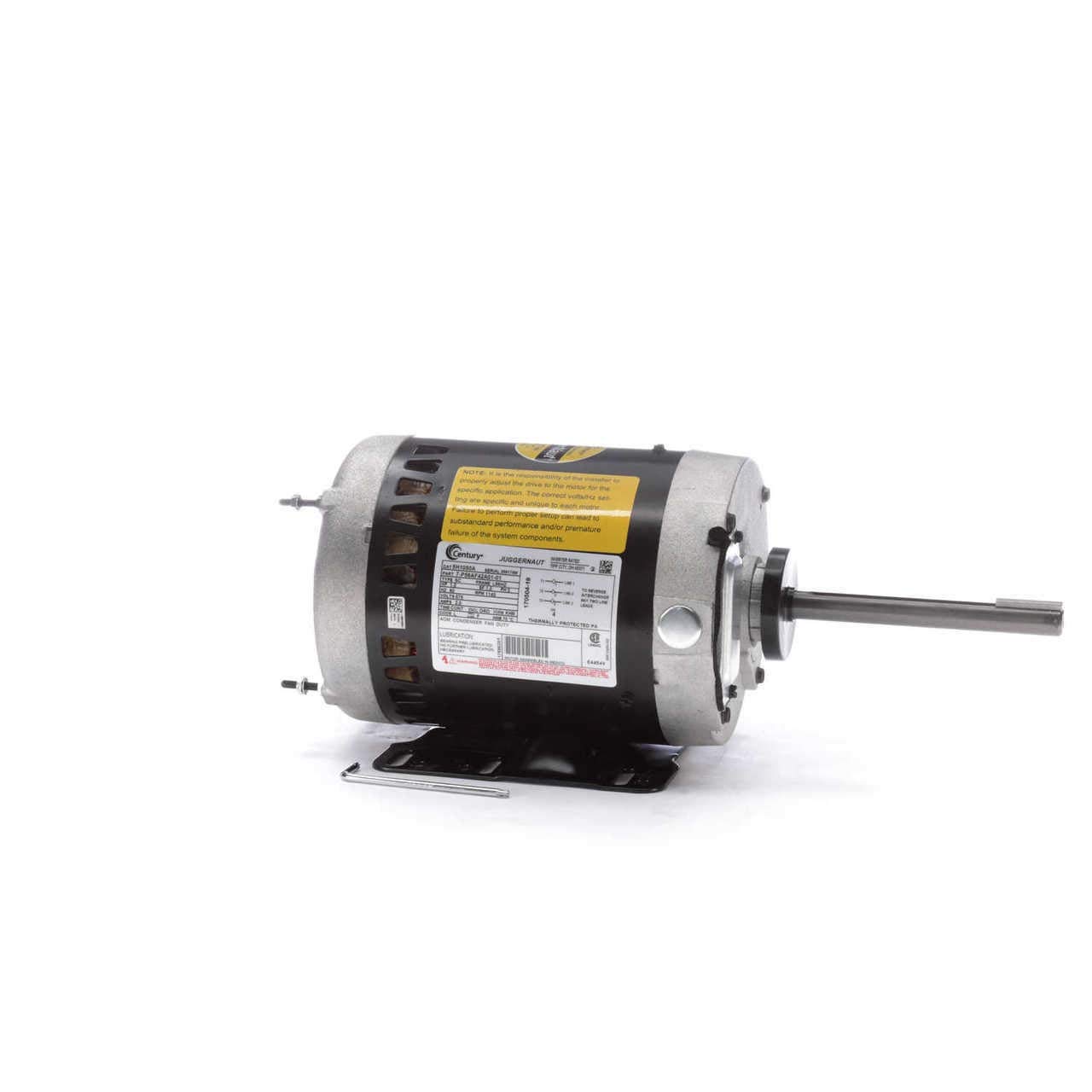

2 HP Condenser Fan Motor 1140 RPM 60Hz - Replacement for HVAC, Refrigeration & Cooling Systems

'Condenser Fan Motor,Motor Design 3-Phase,Motor Enclosure Design Open Air-Over,2 HP,RPM Range 1101-1200,Nameplate RPM 1140,Voltage 208-230/460,56HZ Frame,Number of Speeds 1,Overall Length 18-11/16 In.,Shaft Length 6-1/16 In.,Shaft Orientation Horizontal or Up,Features Inverter Duty, Removable Rigid Base, Quick Disconnect Design,Motor Shaft Rotation CW/CCW,Full Load Amps 7.4-7.0/3.7,Rigid Base Motor Mounting Type,Thermal Protection Auto,Insulation Class F,Service Factor 1.0'

Price For Each No. of Speeds 1 Motor Shaft Rotation CW/CCW Motor Sub Application Condenser Fan Motor Thermal Protection Auto Motor Design 3-Phase Hz 60 Motor Bearings Ball Motor Service Factor 1.00 Phase 3 Motor Enclosure Design Open Air-Over Item Condenser Fan Motor Motor Application HVAC/R Duty Continuous

Features Inverter Duty, Removable Rigid Base, Quick Disconnect Design Standards UL Recognized (E44549), CSA Certified (LR4642) Voltage Compatibility 208, 230, 240, 460, 208-220/440, 208-230, 208-230/460, 208-240, 220/460, 220-230/460, 230/460 Full Load Amps 7.4-7.0/3.7 Shaft Dia. 5/8" Body Dia. 6-1/2" Frame 56HZ Mounting Stud Pattern 4-1/8" x 4-1/8" Voltage 208-230/460 Stud Size 10-32 Ins. Class F

Shaft Length 6-1/16" Stud Quantity 4 Motor Shaft Design Keyed with Single Flat Overall Length 18-11/16" Bolt Circle Dia. 5-7/8" Motor Mounting Position Horizontal or Vertical Shaft Up Nominal Efficiency 79.5% Application HVAC Motor Mounting Type Rigid Base Nameplate RPM 1140 Max. Ambient Temp. 70 Degrees C HP 2 Length Less Shaft 12-5/8" Country of Origin (subject to change) Mexico
